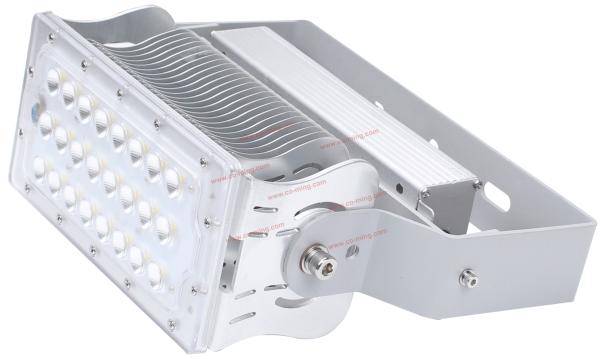

AC90 - 277V 50/60Hz Meanwell Driver High Power Led Flood Lights
140LM/W With CE RoHS Approval
Description:
1. Arc bracket , arbitrary regulation within a range of 180 degrees
2. 11 irradiation angle adjustment point within a single module ,
once installed, it can irradiate several
regions, here is module schematic;
3. All the connections are made of Austenite 304 stainless steel
double screw design, structural stability,
shock resistance. Here the crews close-up;
4 Japan's Mitsubishi original material with high transmittance of
the lens, light transmittance over 91%. Special diamond pattern
processing, modeling diamond internal refraction, excellent
concentrating effect,
which help to determine accurate irradiation angle;
5.. Multiple choices for beam angle , which can adopt to a variety
of environments.
| Electrical Parameters | Input Voltage | AC90-277V 50/60Hz | Power Factor | > 0.95 |
| LED Type | LUMILEDS | LED Initial Flux | 170-180LM/W
|
| Lamp Initial Flux | 140LM/W±5% |
| Working Life | 50000 hours | CCT | 2700-6500K |
| Power Efficiency | > 90% | Beam Angel | 15°/30°/60°/120° |
| IP Grade | IP65 | Working Temperature | -40℃ +60℃ |
| Model | LED Power | LED Quantity | LampSize(mm) | Net Weight(kg) |
| CO-T400-100W | 100W | 168PCS | 226*183*102 | 2.8±5% |
Applications:
Advertising signs, factory, building, tennis court, square,
gymnasium, parking lot, port and dock, park, trees,indoor scenery
lights adorn and sculpture green lighting project.
Packaging of flood Light LED :
Our individual package maximize protecting the flood lights from
transfer damage in transit.
1. Label on backside of each flood light and your required label is
available.
2. One piece led flood Light per carton.
3. This is our regular packing of the led flood light, if you need,
we can also custom your own color packing and put your logo on it.
service:
1. Any inquiries, will be replied in 24 hrs.
2. All your inquiries will be well explained by our experienced
staff.
3. All after sale problems will be deal with in 24hrs.
4. OEM, ODM welcomed.
5. Distributorship is available for your unique design and some our
current models.
6. We will keep secret for customer sale area,design ideas and all
other private information.
7. Offer 3-5 years warranty.
8. Lighting design & solution for free --- Provide IES file, Dialux
lighting design.
