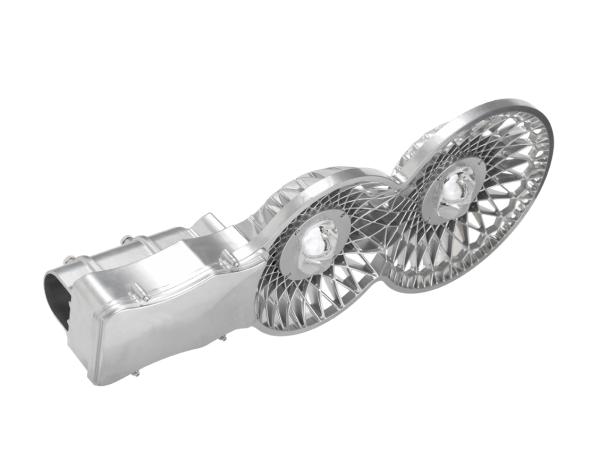

Custom Led Road Lamp 36V DC 100W 120W 160W 180W 200W with Aluminum
Alloy Housing
Specifications:
OPTICAL | LED Power Consumption | 2X50w | 2X60w | 2X70w | 2X80w | 2X90w | 2X100w |
System Power Consumption | 110w | 130w | 155w | 175w | 195w | 210w |
LED Initial Flux | 100lm-110lm/watt(*Pure White 6000K-6500K) |
Illumination (Enadir) (LED Power=180W PW6500K) | MountHeight= 6M : >118 lux MountHeight= 8M : >65 lux MountHeight= 10M : >43 lux MountHeight= 12M : >30 lux |
CRI | WW: Ra>60 PW: Ra>70 |
Light Distribution Curve | Asymmetric (Bat Wing)/ Rectangular Beam |
Beam Angle | 120-140 degrees |
Light Decay | < 15% (20, 000 hours) |
ELECTRICAL | Input Voltage | AC85V-AC265V, AC277V+ (50Hz-60Hz) |
Working Voltage | 36VDC |
TJ | 60℃±10 % |
Power Efficiency | >84% |
Power Factor | >0.95 |
IP Grade | IP67 |
MECHANICAL | Dimensions | L81*W34*H19cm |
Net Weight | 10.0KG±5 % |
Material | Cu-Mg-Al alloy |
Working Environment | Temp: -40℃ ~ 55℃ Humid:10%-90% |
Dimension of pipe for installation | Φ62mm |
Description:
rfect lighting design ensures brightness and uniform illumination,
and meets different requirements of road lighting.
2. US Bridgelux high-lumen integrating encapsulated LED chip.
3. Well-designed heat radiation, reaching the best heat radiation
effect.
4. Die-cast aluminum alloy housing guarantees its high soundness;
5. Long life power driver ensures above 50000 hours.
6. Environmental friendly and energy-saving, no mercury or lead.
7. Consume 50%-70% less power than HID street light
Applications:
These street lights are designed for main road, highway, tunnel,
bridge, avenues, highways, crossing, rural road, industrial estate,
national road, parks, campus, boat dock, remote area, military
base, farm, airport , etc
